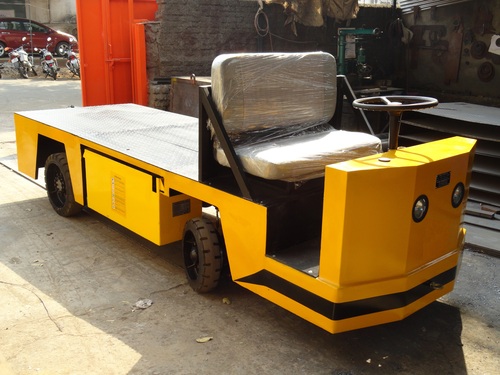

4 Wheel Platform Truck

4 Wheel Platform Truck
4 Wheel Platform Truck
Product Code : 074
Brand Name : TECHNO LIFT
Product Description

Leveraging on our heavy industrial experience and unfathomable knowledge, we are betrothed in providing distinguished quality of Wheel Platform Truck. It is an ideal product for being used in factories, warehouses,dockyards,airport,railway workshops and fertilizer plants. Our product offers low center of gravity and a small turning radius ensuring stable and efficient operation. This platform trucks are checked by our professionals and quality controllers. This 4 Wheel Platform Truck is made available in the market at competitive prices.

Features.

  • Robust

  • Sturdy

  • Easy Accessibility

  • Low cost

BATTERY OPERATED PLATFORM TRUCK - (4 wheeler)




Capacity:  2 tons, 3 tons & 4 ton





ADVANTAGES:-





Four-wheel industrial platform trucks are ideal for use in factories, warehouses, dockyards, airports,


railway workshops, fertilizers plants, chemical and pharmaceutical factories. Will increase the efficiency


and productivity of your operation.





Low Center of Gravity and small turning radius ensures the stable and convenient operations.



It is energy saving, pollution free, silent in operation.




Safer operations by adding over-load protection and short circuit protection.



Equipped with high-quality battery and battery discharge indicator.



CHASSIS :





Fabricated from rolled channels and plates.





DRIVE UNIT AND TRANSMISSION :





The vehicle is driven by traction motor (AC/DC) powered by suitable traction battery's, the wheel is transmitted

through fully enclosed oil bath gear box mounted directly on motor ant output shaft of gear box connected

to rear differential axle through propeller shaft.




ELECTRICAL SYSTEM :





Microprocessor based MOSFET controller provides smooth and stepless control of speed and acceleration.


Control panel is located below the steering handle, consist of ON-OFF switch, Kew switch, forward and


 reverse switch, emergency cut-off switch and battery discharge indicator with low battery buzzer system.

STEERING :-





Standard automotive type steering on front wheels for easy control.



BRAKE :





internally expanding double shoe type hydraulic brakes on rear wheel, operated by a foot pedal. Parking brake

provided on the rear wheels.





SUSPENSION:-





Leaf spring and shock absorber are provided on the both the axle.



WHEELS:-





All tyre are solid rubber mounted tyres.





Solid cushin / Non-marking tyres can also be supplied as an option on customer request.



ACCESSORIES:-





The truck comes with Horn/head lamp/ tail lamp and brake lights.








Main specifications:



Model







Drive type



Electric



Load capacity

 Q(kg)

3000



Wheelbase

 y(mm)

1800



Tyres



Solid



Tyre size,front



535 X 150



Tyre size,rear



535 X 150



Wheels,number front rear(x=driven wheels)



2/2x



Overall length

 l1(mm)

3195



Overall width

 b1/b2(mm)

1250



Overall Height

mm

1450



Platform Size

mm

1200 X 2000



Ground clearance,centre of wheelbase

 m2(mm)

125



Turning radius Appx

 Wa(mm)

3600



Travel speed,laden

 Km/h

7 to 9



Travel speed unladen

 Km/h

10 to 12



Gradeability- Laden

 %xm

1:15



Gradeability - Unladen

 %xm

1:08



Service brake



Hydraulic



Controller



MOSFET



Drive motor rating S2 60 min

HP

3.5



Battery voltage,nominal capacity K5

 V/Ah

36 / 300
